AI governance auditing is the formal process of examining whether an organization's AI systems, governance policies, risk controls, and operational evidence meet the requirements of applicable frameworks, including ISO 42001, NIST AI RMF, or the EU AI Act, through systematic review of documentation, control testing, and operational records.

Auditors are not impressed by policies. They are looking for evidence that those policies were actually followed, in the form of risk registers, model cards, incident logs, monitoring data, and control-testing records. The question is not whether you have an AI governance program. It is whether you can prove it.

TL;DR - Key Takeaways

AI governance auditors examine four evidence categories: governance documentation (policies, scope, objectives), AI system records (model cards, data inventories, impact assessments), risk and control evidence (risk registers, treatment plans, testing records), and operational evidence (monitoring logs, incident reports, management review minutes).
ISO 42001 clause 9.2 requires organizations to conduct internal audits at planned intervals (annually at minimum) before the external certification audit. The internal auditor must be independent of the AIMS operations being reviewed.
NIST AI RMF's GOVERN function documentation requirements (governance charter, accountability structures, risk appetite statement) map directly to what ISO 42001 clause 4 and clause 5 auditors examine.
The most common audit finding is not missing documentation, it is documentation that exists but cannot be produced quickly, linked to a specific system, or tied to evidence that it was actually implemented.
NeuralTrust TrustLens and TrustGuard generate the tamper-evident audit logs and behavioral monitoring evidence that auditors require for Article 12 (EU AI Act) and ISO 42001 clause 9 evidence.

What do AI auditors actually look for?

Auditors are asking for this exact list, do you have it ready?

AI governance audits differ from traditional IT audits in one critical way: the subject matter is probabilistic, context-dependent, and inherently difficult to test at a point in time. A firewall either allows a connection or it does not. An LLM-based HR screening tool may produce fair outputs in 98% of interactions and discriminatory outputs in 2%, and both observations may be "correct" from a technical standpoint.

This is why AI auditors focus on process evidence rather than point-in-time testing: they want to see that you have systematic controls in place that continuously detect and correct governance failures, not just that the system looked fine on the day of the audit.

Across ISO 42001, NIST AI RMF, and EU AI Act audits, examiners evaluate four categories of evidence:

Evidence category	What auditors examine	Framework requirement
Governance documentation	AI policy, AIMS scope statement, AI objectives, accountability structures, management commitment	ISO 42001 Clauses 4–5; NIST AI RMF GOVERN function
AI system records	AI system inventory, model cards, data governance records, AI impact assessments, Statements of Applicability	ISO 42001 Clauses 6–8; EU AI Act Article 11 (technical documentation)
Risk and control evidence	Risk register, risk treatment plan, control testing records, Annex A control selection justification	ISO 42001 Clause 6; NIST AI RMF MAP and MEASURE functions
Operational evidence	Monitoring logs, incident reports, anomaly records, human override records, management review minutes, corrective action logs	ISO 42001 Clause 9; EU AI Act Articles 12, 14, 72; NIST AI RMF MANAGE function

Definition: An AI governance audit = a formal, systematic examination of an organization's AI Management System (AIMS) to verify that it conforms to defined requirements, whether those requirements come from ISO 42001, NIST AI RMF, the EU AI Act, or an organization's own internal AI governance policy, through review of documentation and operational evidence.

Auditors operate on a simple principle from ISO 42001 clause 9.2: if it is not documented and evidenced, it did not happen. "We monitor our AI systems" is not evidence. A dashboard showing 180 days of policy violation rate data, with three documented threshold-breach investigations and their resolutions, is evidence.

What documents must you have ready before an AI audit?

Based on ISO 42001's explicitly required documentation (Clause 7.5), and NIST AI RMF GOVERN function documentation requirements, the following documents must exist, be version-controlled, and be producible within minutes of an auditor's request:

Governance foundation documents:

AIMS Scope Statement (ISO 42001 Clause 4.3): which AI systems, functions, and processes are within scope of your AI management system.
AI Policy (Clause 5.2): top management's commitment to responsible AI, covering fairness, transparency, accountability, human oversight, and societal impact.
AI Objectives (Clause 6.2): measurable goals for the AIMS, aligned with the AI policy.
Roles and responsibilities matrix: who owns AI risk decisions at the board, executive, and operational level. This maps to NIST AI RMF GOVERN 2.

AI system records:

AI system inventory: a complete, current list of every AI system in production, development, and pilot, including third-party AI tools. This is the foundation everything else builds on.
Model cards: for each AI system: purpose, data sources, known limitations, performance benchmarks, and bias assessment results.
AI impact assessments (Clause 6.1.4): documented methodology for assessing the potential impact of each AI system on individuals, the organization, and society.
Statement of Applicability (Clause 6.1.3): which Annex A controls are applicable, which are excluded, and the justification for each exclusion.
Data governance records: training data provenance, data quality assessments, data governance procedures.

Risk and control records:

AI risk register: all identified AI risks, their scores (likelihood × impact × exploitability per the methodology in our AI Risk Management guide), treatment decisions, and current status.
Risk treatment plan (Clause 6.1.3): selected treatments for each identified risk, with implementation timelines and owners.
Control testing records: evidence that controls were tested, by whom, on what date, with what result.

Operational evidence:

Monitoring logs: tamper-evident logs of AI system inputs, outputs, and behavioral metrics over time.
Incident and anomaly reports: every governance-relevant event, with root cause analysis and corrective action documentation.
Management review minutes (Clause 9.3): records that senior management reviewed AIMS performance and made documented decisions.
Internal audit records (Clause 9.2): findings from the most recent internal audit, with corrective actions and their verification.

How do you build an evidence package for an AI governance audit?

An evidence package is the organized set of documents, records, and data that you present to an auditor to demonstrate conformity with each requirement being assessed. The most common audit preparation mistake is treating evidence collection as a last-minute activity. By the time the auditor arrives, evidence collection should be a continuous operational process, not a document-gathering sprint.

Step 1: Map every requirement to a document

Create a cross-reference table linking each auditable clause or requirement to the specific document or record that evidences it. For ISO 42001, this means mapping each of Clauses 4–10 and each applicable Annex A control to at least one piece of evidence. For EU AI Act high-risk systems, map each Article 9–15 requirement. For NIST AI RMF, map to the relevant GOVERN, MAP, MEASURE, and MANAGE subcategories.

One document can and should satisfy multiple requirements: your AI risk register is evidence for ISO 42001 Clause 6, NIST AI RMF MEASURE, and EU AI Act Article 9 simultaneously.

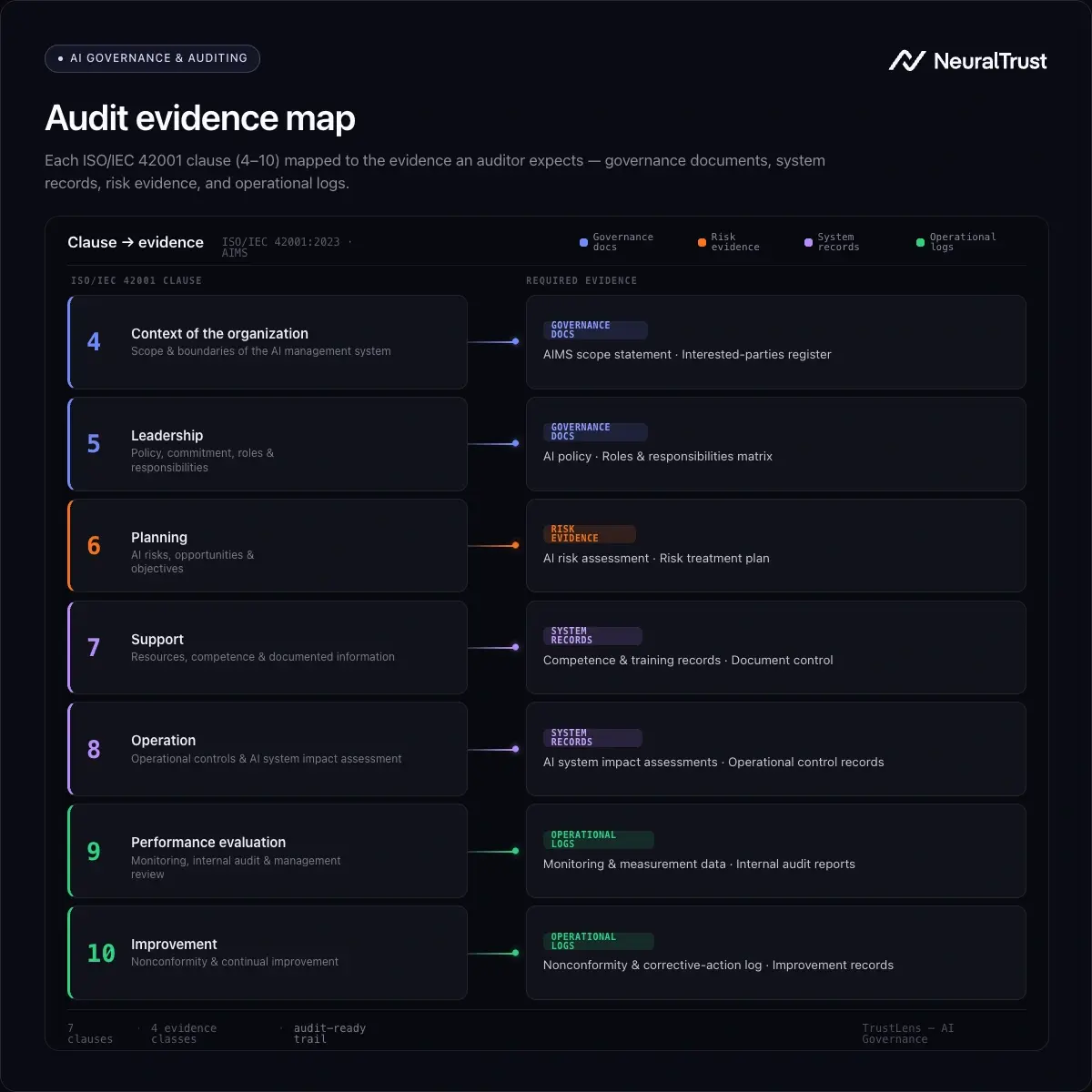

The image shows a map for ISO/IEC 42001 clause (4-10) mapped to an evidence an AI Auditor expects (governance documents, system records, risk evidence, and operational logs).

Step 2: Test each piece of evidence for auditability

For each document in your evidence package, ask three questions:

Can it be produced in under five minutes? If the answer is no, it is not audit-ready.
Is it version-controlled with a clear approval history? An undated, unsigned policy document is not evidence, it is a draft.
Does it link to the AI system or risk it claims to govern? A generic "AI monitoring procedure" that does not name specific systems or metrics is insufficient.

Step 3: Centralize and protect the evidence package

All audit evidence must be stored in a single, access-controlled location with tamper-evident properties. Distributing evidence across email threads, personal drives, and multiple SharePoint folders is the fastest way to create doubt in an auditor's mind. Version control, access logs, and retention policies must be in place and demonstrable. As ISO 42001 Clause 7.5 requires, all documented information must be controlled including version control, approval processes, access controls, and retention requirements.

NeuralTrust TrustLens provides the continuous monitoring logs, anomaly records, and behavioral evidence that form the operational evidence layer of an AI governance audit package automatically generated, tamper-evident, and mapped to EU AI Act Article 12 and ISO 42001 Clause 9 requirements.

What are the most common AI audit findings, and how do you fix them?

Based on documented patterns from ISO 42001 certification audits, these are the five findings that appear most frequently, and the remediation approach for each.

Finding 1: AI system inventory is incomplete or out of date

Auditors discover AI tools in use that are not in the inventory: typically shadow AI tools adopted by business units without going through the governance intake process. Fix: implement a continuous AI system discovery process using Agent Posture Management, not a one-time inventory exercise.

Finding 2: Risk assessments exist but are not linked to specific systems

A generic "AI risk assessment document" is created once and never updated when new systems are deployed. Fix: require a system-specific risk assessment for every AI system before it enters production, stored in the risk register with the system's identifier.

Finding 3: Controls are documented but not evidenced

The policy says "all AI outputs are filtered for policy violations before reaching users" but there is no monitoring data, no filter configuration record, and no test record to confirm the control is operating. Fix: for every documented control, define in advance what operational evidence will demonstrate it is working, and ensure that evidence is generated continuously, not retrospectively.

Finding 4: Internal audit was not conducted independently

The person who designed the AIMS also conducted the internal audit. This violates ISO 42001 Clause 9.2.2's independence requirement. Fix: use an external consultant or a qualified internal auditor from a team not involved in AIMS operations.

Finding 5: Corrective actions from previous findings were not verified

The organization identified a gap, created a corrective action plan, but never documented verification that the corrective action was completed and effective. Fix: every corrective action must have a verification step with a named verifier and a completion date, documented in the corrective action log.

How do you run a mock AI audit before the real one?

A mock audit (also called a pre-audit or internal audit) is the single most effective way to identify gaps before an external auditor does. Vanta's ISO 42001 audit guide confirms: under Clause 9.2 of ISO 42001, organizations must conduct internal audits at planned intervals to identify nonconformities early, when remediation is faster and less disruptive.

Run the mock audit in three phases:

Phase 1: Documentation review (1–2 days)

Simulate the Stage 1 audit: examine every document in your evidence package against the relevant clause or requirement. Flag documents that are missing, undated, unsigned, or cannot be linked to a specific AI system. This is the equivalent of what an external auditor does in their desk review before arriving on site.

Phase 2: Control walk-throughs (2–5 days)

For each documented control, walk through how it operates in practice. Ask the operational owner to demonstrate the control. If a control is "prompt injection filtering on all customer-facing AI systems," ask the security team to show the filtering logs, the configuration, and the most recent test result. If they cannot demonstrate it in five minutes, it will not satisfy an auditor.

Phase 3: Gap remediation and re-check

Document every gap found in Phases 1 and 2 as a formal finding, assign a named owner and a remediation deadline, and conduct a re-check before the external audit date. The internal audit report and the gap closure records become part of your evidence package, they demonstrate that you have a functioning internal audit process, which is itself a requirement.

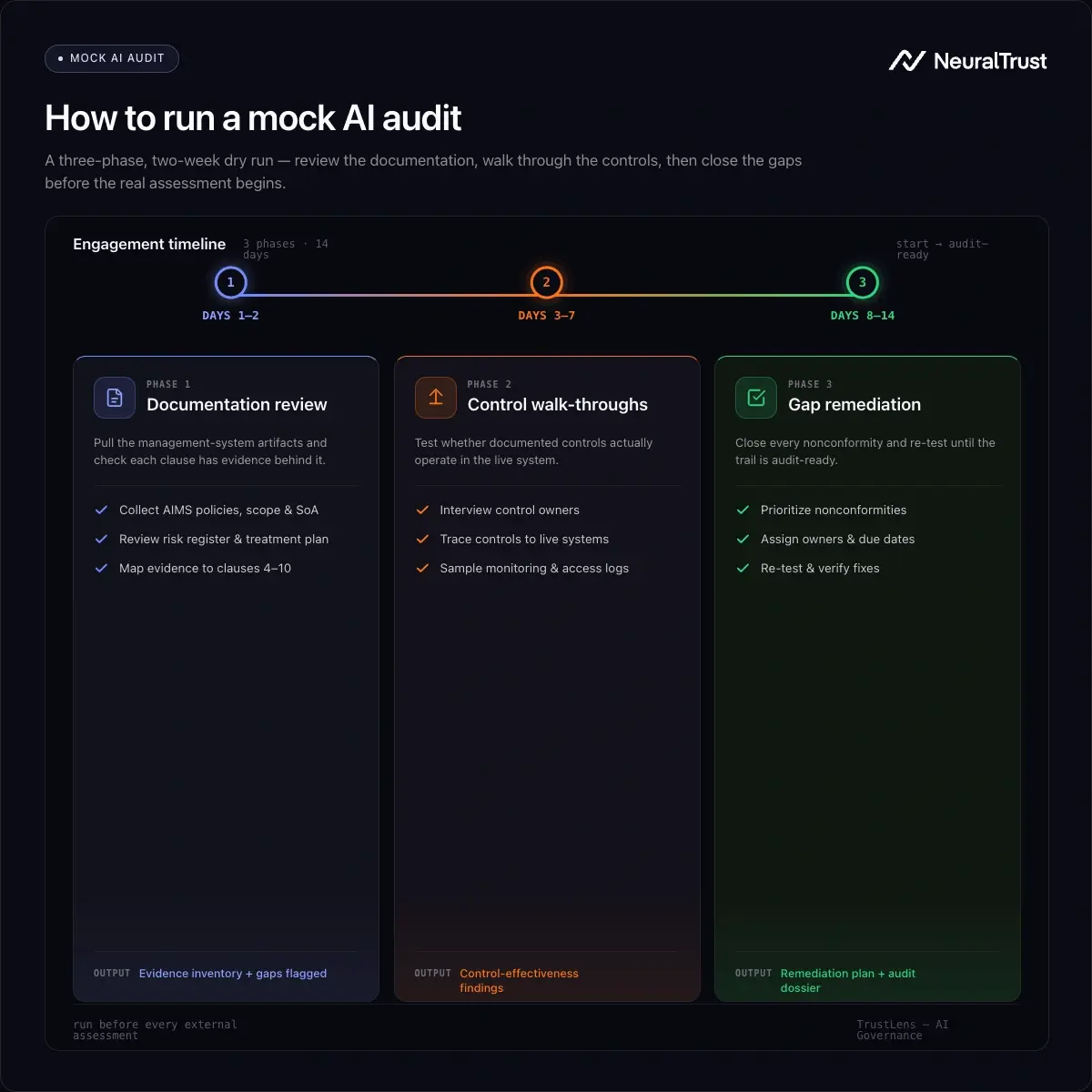

The image shows a diagram about an AI Audit Mock Timeline: Documentation Review, Control Walk-Throughs, and Gap Remediation

For ongoing continuous monitoring between audits, see our AI Governance Monitoring guide for the metric framework and alert architecture that keeps your operational evidence current.

AI audit readiness checklist

Use this checklist to assess your readiness for an internal or external AI governance audit:

1. Governance foundation: ISO 42001 Clauses 4–5 / NIST AI RMF GOVERN

☐ AIMS Scope Statement exists, is version-controlled, and is approved by senior management
☐ AI Policy covers responsible AI principles, is signed by top management, and has been communicated to relevant staff
☐ AI Objectives are measurable and documented
☐ Roles and responsibilities matrix exists with named owners at board, executive, and operational level
☐ Statement of Applicability lists all Annex A controls with inclusion/exclusion justification

2. AI system records: ISO 42001 Clauses 6–8 / EU AI Act Article 11

☐ AI system inventory is complete, current, and includes third-party AI tools
☐ Model card exists for every AI system in scope, with purpose, data sources, limitations, and performance benchmarks
☐ AI impact assessment conducted for each system before deployment
☐ Data governance records cover training data provenance and quality assessment

3. Risk and control evidence: ISO 42001 Clause 6 / NIST AI RMF MAP and MEASURE

☐ AI risk register exists with all identified risks, scores, treatments, owners, and review dates
☐ Risk treatment plan documents selected controls, implementation status, and residual risk acceptance
☐ Control testing records exist for all implemented controls, with dates and results
☐ Evidence cross-reference table maps each requirement to at least one piece of evidence

4. Operational evidence: ISO 42001 Clause 9 / EU AI Act Articles 12, 14, 72:

☐ Monitoring logs are tamper-evident, continuous, and retained per policy
☐ Every governance incident has a documented root cause analysis and corrective action record
☐ Management review minutes exist for the most recent review cycle
☐ Internal audit was conducted by an independent auditor with findings documented and corrective actions verified
☐ All corrective actions from previous audits are closed with verification evidence

FAQs about AI governance auditing

1. What do AI auditors look for?

AI governance auditors examine four categories of evidence: governance documentation (AI policy, AIMS scope, objectives, accountability structures), AI system records (model cards, data governance records, impact assessments), risk and control evidence (risk register, risk treatment plan, control testing records), and operational evidence (monitoring logs, incident reports, management review minutes, internal audit records). Auditors are looking for proof that governance policies were actually implemented and operating continuously.

2. What is the difference between an internal and external AI audit?

An internal AI audit is conducted by an independent internal team or external consultant, at planned intervals (annually at minimum for ISO 42001), to identify gaps before the formal certification audit. Under ISO 42001 Clause 9.2.2, the auditor must be independent of the AIMS processes being reviewed. An external audit is conducted by an accredited certification body (for ISO 42001) or a regulator/market surveillance authority (for EU AI Act high-risk systems). The external Stage 1 audit reviews documentation; the Stage 2 audit tests operational effectiveness.

3. How long does it take to prepare for an AI governance audit?

A functional evidence package for a single high-risk AI system typically takes six to twelve weeks to build from scratch, assuming governance documentation does not yet exist. Organizations with existing ISO 27001 or NIST CSF programs can typically extend their evidence package to cover ISO 42001 requirements in three to six months. The timeline is driven not by the amount of documentation required, but by the time needed to generate operational evidence (monitoring data, control testing records, and incident logs) that demonstrates ongoing implementation.

4. What happens if you fail an AI governance audit?

For ISO 42001, audit findings are classified as major nonconformities (the AIMS does not meet a fundamental requirement, certification is not granted until resolved), minor nonconformities (a localized gap in implementation), or observations (areas of risk not yet a violation). Organizations typically have 90 days to remediate major nonconformities and provide closure evidence. For EU AI Act market surveillance inspections, failure to demonstrate required controls, particularly for high-risk Annex III systems, can result in fines of up to €30 million or 6% of global annual turnover.

5. Can you use NIST AI RMF evidence for an ISO 42001 audit?

Yes, and this is one of the most efficient approaches for organizations that have already implemented NIST AI RMF. The MAP function outputs (AI system inventory, context documentation, harm taxonomy) map directly to ISO 42001 Clauses 4 and 8. The MEASURE function outputs (risk metrics, monitoring data) map to Clause 9. The MANAGE function outputs (incident records, corrective actions) map to Clauses 9 and 10. The NIST AI Resource Center maintains official crosswalks between AI RMF and other frameworks including ISO 42001.

Key Takeaways - What did we learn in this article?

**AI governance auditors are looking for proof of execution: every documented control must have corresponding operational evidence demonstrating it is working continuously.
The five documents auditors most commonly cannot find quickly: the AI system inventory, model cards for each system, the Statement of Applicability, monitoring logs linked to specific systems, and corrective action closure records.
ISO 42001 Clause 9.2 requires at minimum an annual independent internal audit before any external certification audit. The internal auditor must be independent of the AIMS processes being reviewed.
A mock audit run in three phases: documentation review, control walk-throughs, and gap remediation. Is the single most effective preparation step. The mock audit report itself becomes part of your evidence package.
NeuralTrust TrustLens and TrustGuard continuously generate the tamper-evident monitoring logs, behavioral anomaly records, and incident reports that form the operational evidence layer auditors require.
